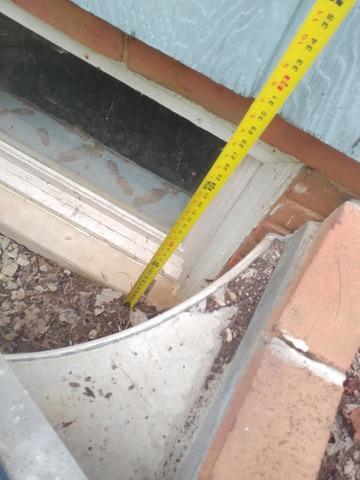

Exterior Window Well
Measurement of window well during initial visit to home

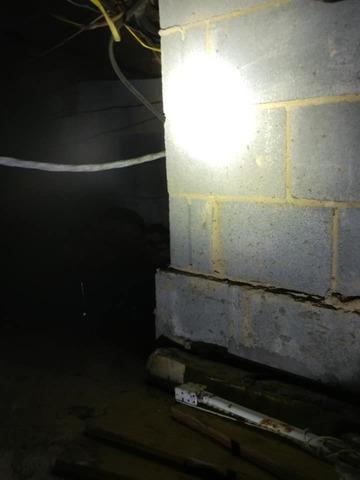

Inspection of crawl space
Crawl Space with block wall
Basement with cracked block walls
Interior inspection of basement with block walls

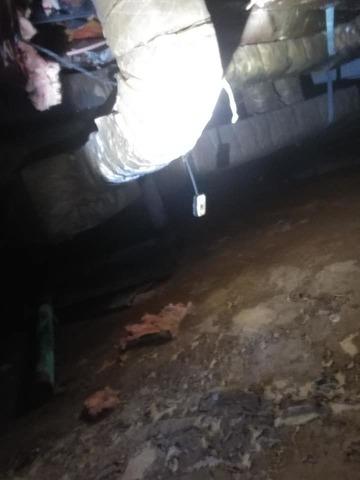

Inspection of crawl space

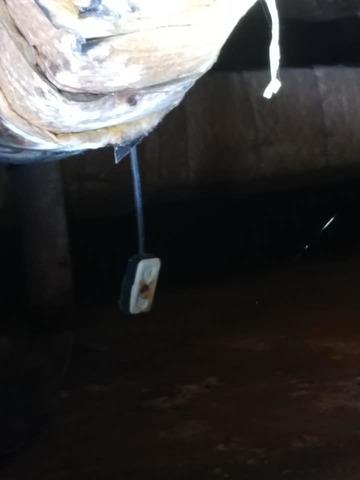

electrical outlet and old insulation falling

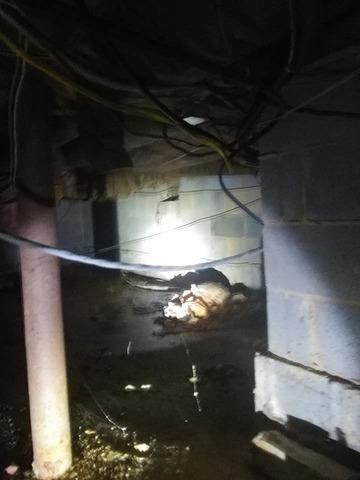

Inpsection of crawl space

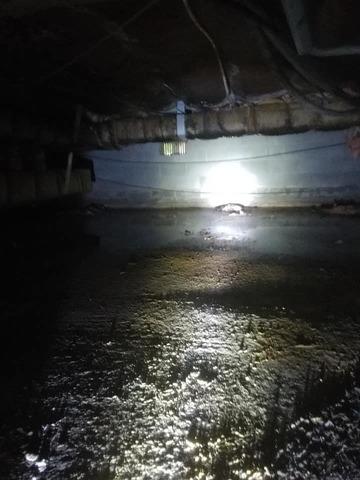

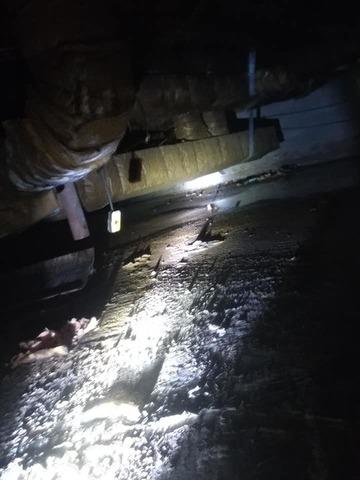

standing water visible along block foundation
Inspection of crawl space
Corner of crawl space with insulation and electrical outlet
Crawl Space Inspection in Fincastle
Further inspection led to discovery of more standing water and larger pieces of insulation that have fallen
Cracks and previous water damage visible

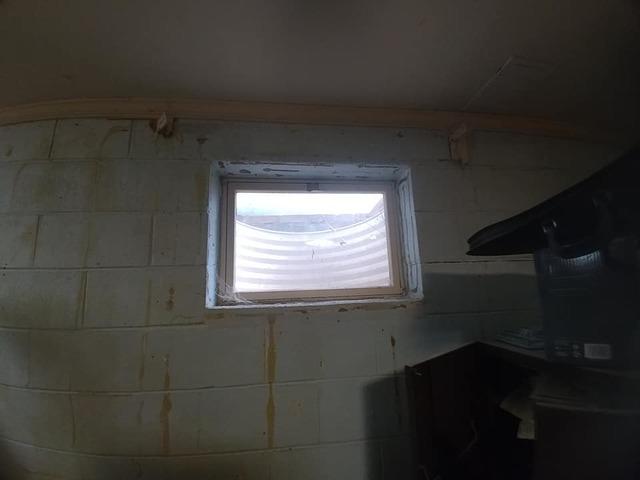

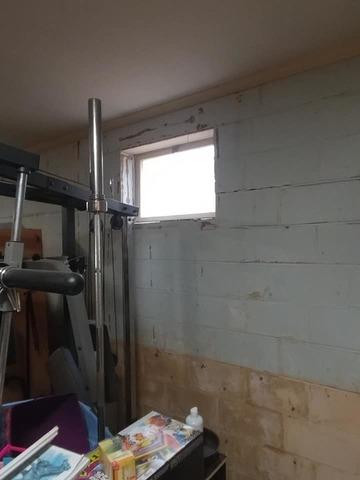

Interior window with block wall
Interior window with block wall
More water damage and cracks visible along front of house

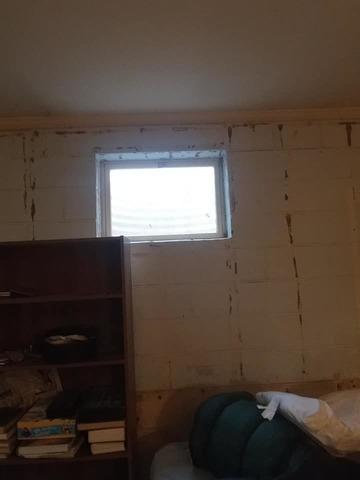

Interior Window
3rd window along front of house

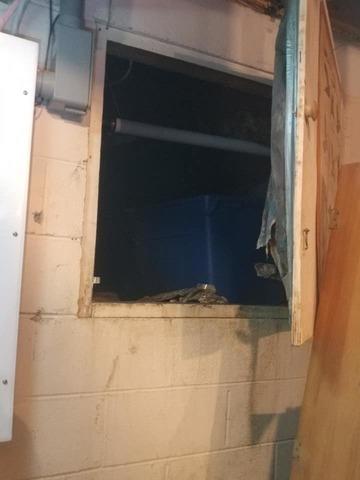

Small interior entrance to Fincastle crawl space.
Opening to crawl space

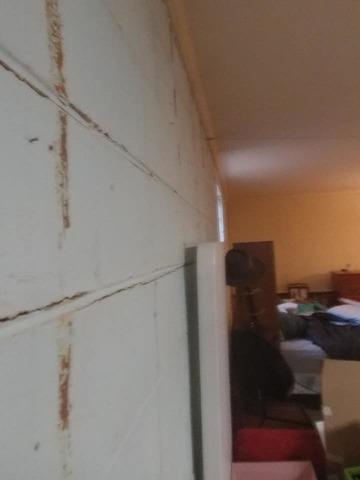

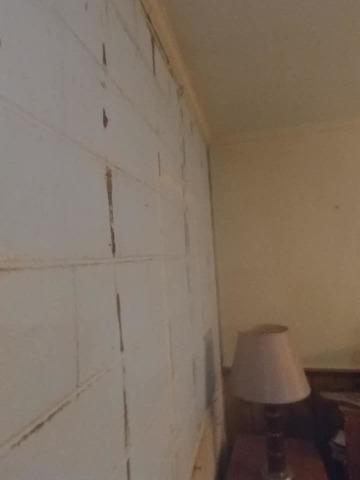

Visible Cracks in Block Wall
The cracks along the front basement wall are visible and past water damage is present.
Visible cracks on block wall

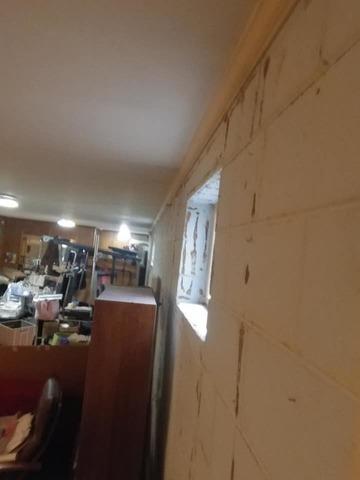

Cracked block wall along front of house
Front exterior of home

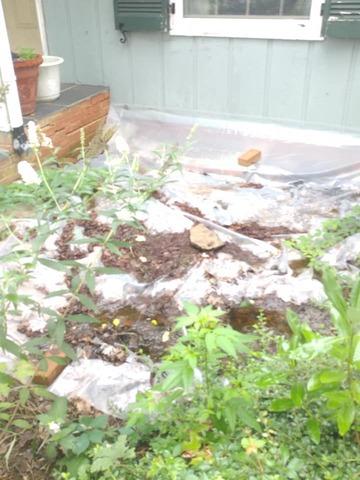

Front Exterior of home with plastic sheets to help prevent moisture and water from entering into basement
Crawl Space inspection
Mud and moisture

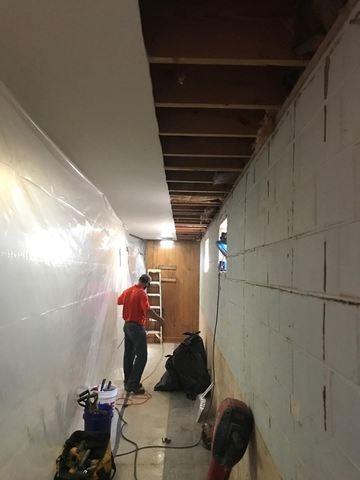

Prep work prior to installation
The crew partitioned the work area from the rest of the basement with sheet plastic to prevent dust and debris from entering other areas of the house.
Prep work prior to installation
Preparations and materials are brought in as the crew prepares to start the project.

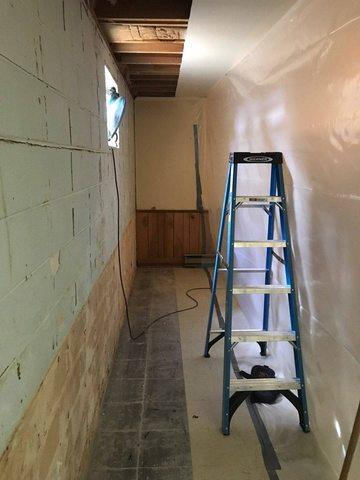

Prepping the area of basement for waterguard install.
The floor is taped and sheet plastic helps prevent dirt and debris from entering the other areas of the basement. Tools and materials are brought in in preparation.

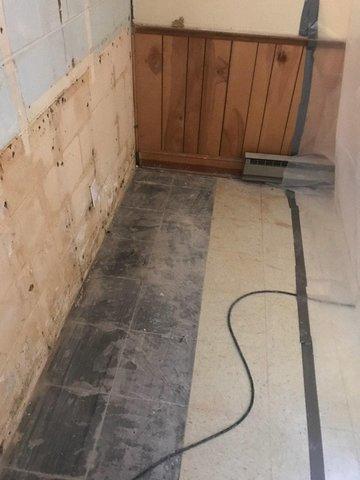

Prep work
Corner of the basement is prepped and sealed with sheet plastic for installation.

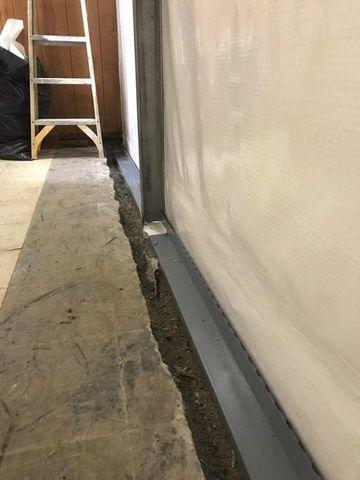

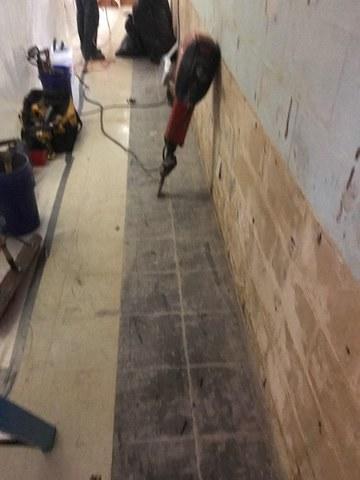

Waterguard installed
The front of the basement floor was jack hammered and Waterguard installed. CleanSpace Wall used on front wall to keep moisture out. Power braces were used to stabilize the wall.

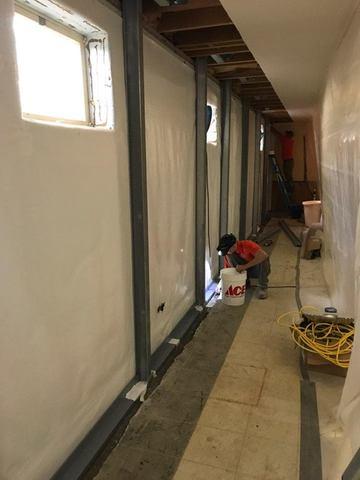

Windows and flooring nearing completion
With the Waterguard installed and the window openings cut and sealed around the perimeter of the ClenaSpace Wall, the crew is working to fill the floor with concrete and finish the area. In the far corner, the crew is also getting the Super Sump ready for installation.

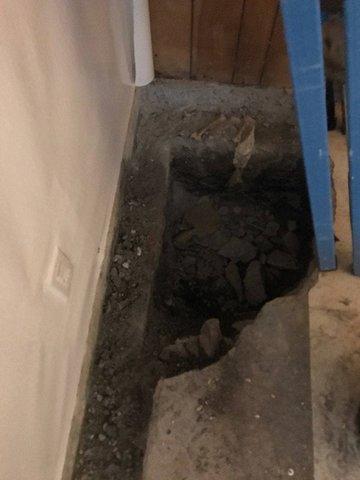

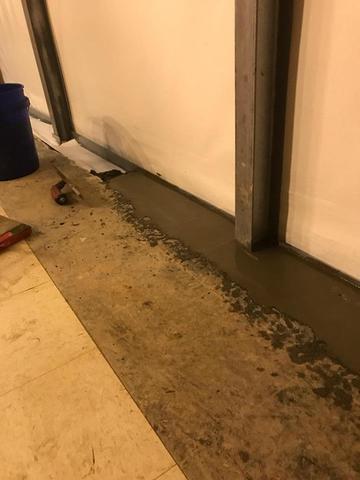

Finishing the Water Drain Installation
Concrete is poured along the jack hammered area of the floor.
Sump pump area is being prepped for install
The Super Sump is being placed in the designated area of the basement. The discharge line will run through the crawl space and from there will discharge outside.

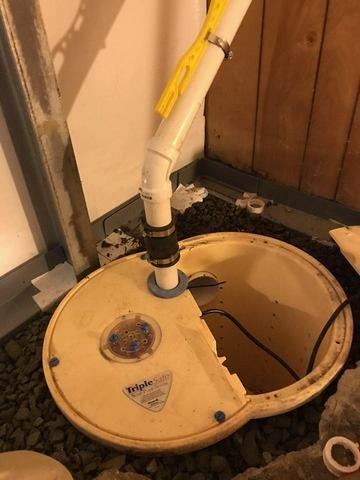

Super Sump installed
The sump is installed and the area is ready to be finished off with concrete.

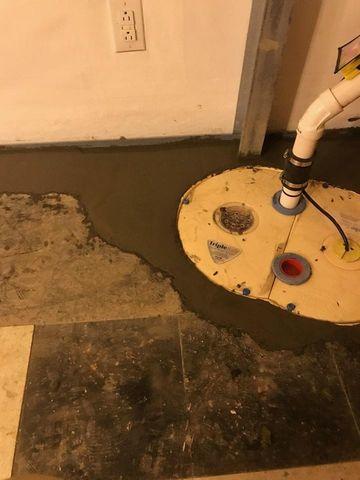

Corner of basement with sump pump
The concrete has been poured around the sump. Behind the sump pump you can see the CleanSpace Wall and the Powerbrace used for stabilization.

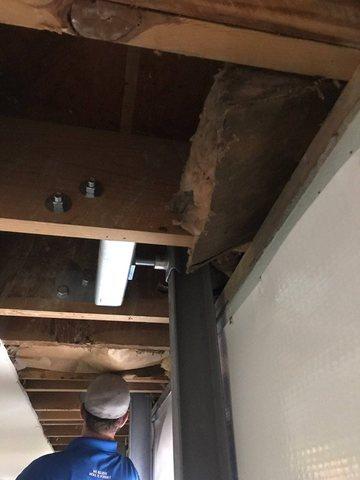

Power Brace
The Power Brace is placed along the wall and under the floor joists above.

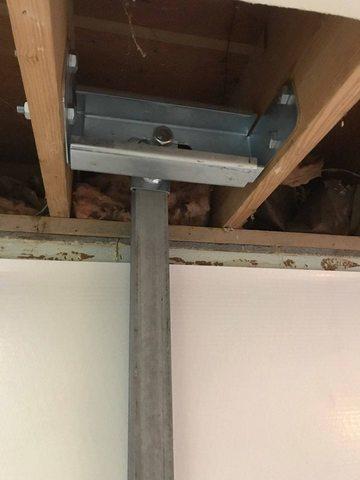

Power Brace installed
The Power brace is fully installed.

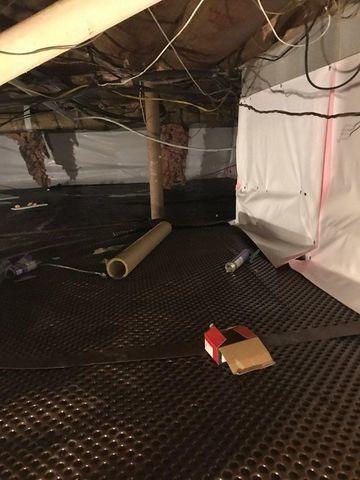

Crawl Space installation

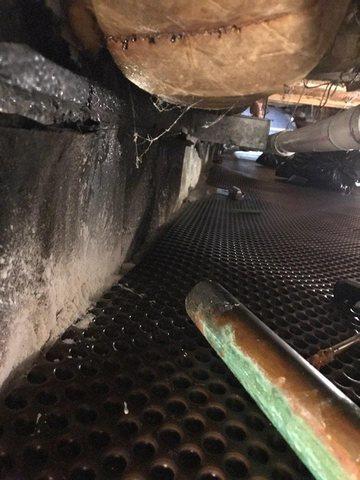

Drainage matting is placed in the crawl space before the clean space is installed. During this time the crew discovered a broken water line. Repairs were made before moving forward with the rest of the installation.
Drainage Matting
More drainage matting is placed down and Clean Space begins to be installed on the block.

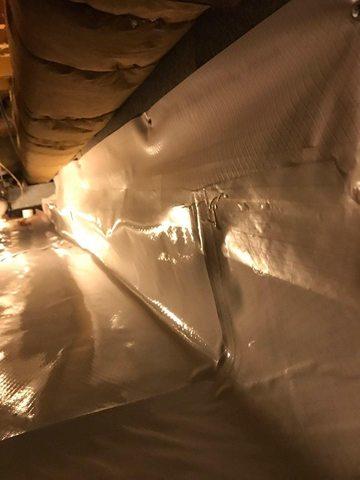

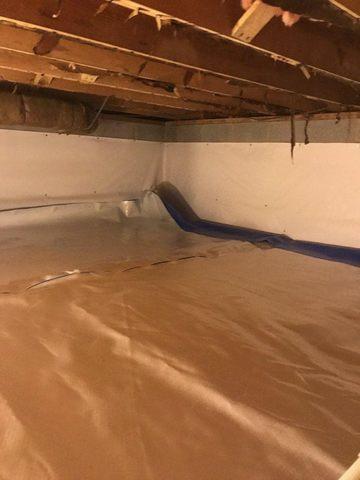

Clean Space
Clean Space is installed on the walls and floors of the crawl space.
Finishing the area
Seams are sealed and taped. The top of the Clean Space along the block walls are fastened and caulked to the wall.
Clean Space finished along the walls
The floor of the crawl space is being put in.

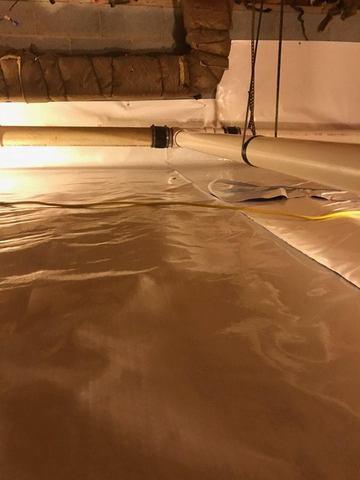

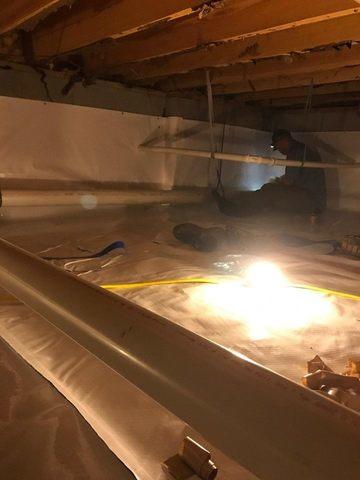

Discharge Line for sump
The discharge line from the installed Super Sump in the basement is run through the area and outside.
Crawlspace
The floor is being put down in all areas of the crawl space.

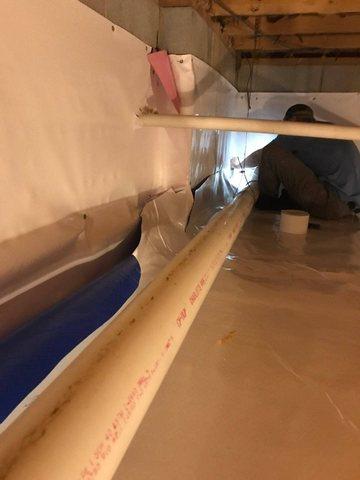

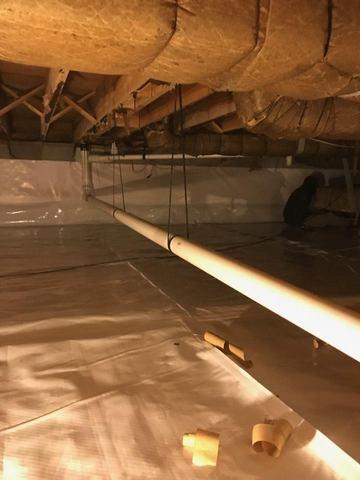

Installation of discharge line
Another view of the discharge line from the sump pump. Notice the line is secured and runs smoothly through the space allowing for thorough discharge outside.
Tight Spaces
Even in smaller spaces, the crew is able to thoroughly and effectively encapsulate the area removing moisture and water from the home.
Final Walk Through
Upon completion, we walk through the project with the homeowner. During the entire process, our crew and all support staff are dedicated to keeping the homeowner informed by answering any questions that may arise. Before we leave your home we will make sure you are satisfied with your installation.
